Class 1, 2, & 3 Electronics: IPC Class Definitions
In electronics manufacturing, printed circuit boards are categorized based on the IPC Class Definitions: Class 1, Class 2, and Class 3.
When designing electronic products, compliance isn't just a final hurdle; it's a foundational principle that guides every decision. Central to this is the IPC classification system, which sets the standards for the quality and reliability of electronic assemblies. The requirements for different product classes, especially IPC Class 2 and IPC Class 3, dictate everything from component selection to manufacturing processes.
Staying compliant is not optional. The features you design and the manufacturing processes you specify should align with the designated class from the very beginning. Misalignment can lead to costly redesigns, safety risks, and significant delays.
In this guide, we’ll break down the differences between Class 2 vs. Class 3 electronics to help you make informed decisions that ensure your product meets the right standards for its intended application.
The first step in navigating IPC standards is understanding the fundamental purpose of your product. Is it designed for general commercial use, or is it a mission-critical device where failure is catastrophic?
IPC Class 2 is the standard for products that require reliable performance but aren't life-sustaining or mission-critical. While these electronics are expected to function correctly throughout their service life, occasional interruptions or the need for repairs are acceptable. Compliance for Class 2 allows for a degree of variability in workmanship as long as the product's overall performance is not compromised.
Think of industrial equipment like:
These products need to be dependable, but if one fails, it typically does not result in a life-threatening situation.
IPC Class 3 is reserved for products where failure is not an option. Performance must be continuous, predictable, and flawless. These are high-reliability electronics intended for the most demanding applications, such as PCBAs (printed circuit board assemblies) for medical defibrillators or flight controllers. Compliance requires meeting the highest IPC standards, with virtually zero tolerance for defects that could impact reliability.
These products are expected to have a long service life and withstand extreme conditions, including wide temperature swings, heavy vibration, and high humidity.
Examples include:
The reliability expectation for Class 3 electronics is absolute: they must perform on demand, every time.

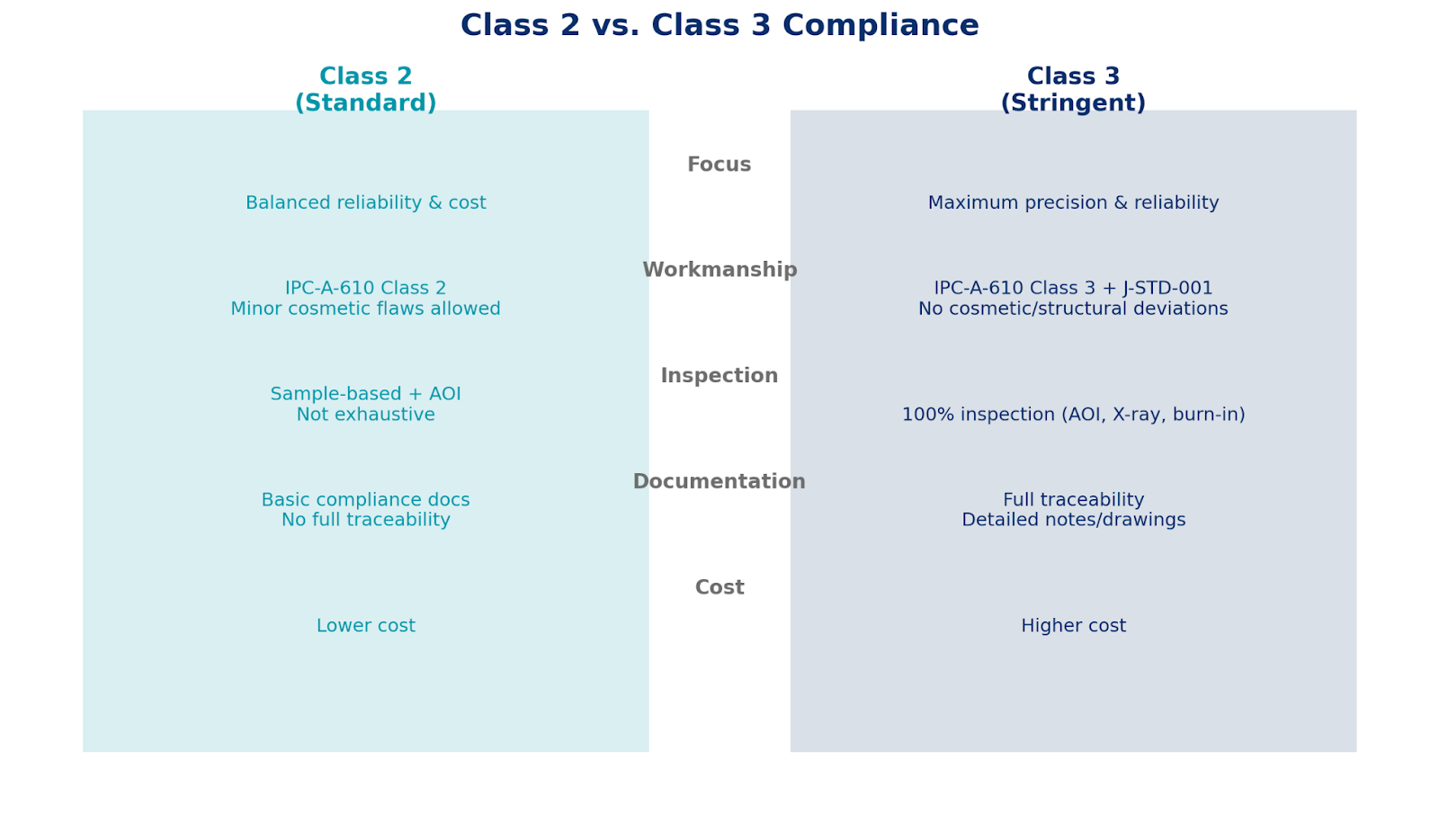

The differences in reliability expectations for IPC Class 2 and Class 3 translate directly into different manufacturing and inspection protocols.
Following IPC guidelines for PCB design is only the beginning; the assembly process must also meet class-specific workmanship standards, such as those in IPC-A-610 and J-STD-001.
Class 2 compliance focuses on ensuring functionality and durability under normal operating conditions, offering a balance between reliability and cost-effectiveness.
However, when transitioning to Class 3, the requirements become significantly more stringent, emphasizing precision, longevity, and flawless performance in critical applications.
Assemblies are built to IPC-A-610 Class 2 standards. This emphasizes functional reliability but permits minor cosmetic imperfections that don't affect performance.
For example: Slight variations in solder joint alignment are acceptable as long as electrical integrity is intact. |
A combination of sample-based inspections and functional testing is common. While Automated Optical Inspection (AOI) is often used, not every component on every board requires exhaustive analysis.
At Matric, for instance: Both pre- and post-reflow AOI inspections are performed on all PCBAs, with acceptance criteria adjusted according to the assembly class. |
What's acceptable for Class 2 might be flagged as a defect for Class 3.
Documentation is typically limited to what is necessary to demonstrate functional compliance, without requiring full traceability for every component.
Leaner inspection protocols and more flexible workmanship standards help keep manufacturing costs lower compared to Class 3, making it a cost-effective choice for non-critical products.
Class 3 demands the highest level of precision and reliability, reserved for products where failure is not an option. Partnering with an experienced Class 3 electronics PCB manufacturer helps ensure those standards are carried through every stage of production.
Rigorous standards and meticulous requirements define Class 3 compliance:
Adherence to IPC 610 Class 2/3 (specifically Class 3) standards is strict. Every detail must meet precise criteria, with no tolerance for cosmetic or structural deviations, even if they don't immediately affect function.
For example: Solder joints must meet exact geometry and wetting specifications as outlined in IPC-A-610 and J-STD-001. For cables, IPC-A-620 standards apply. |
Class 3 demands 100% inspection, often using multiple advanced techniques.
At Matric, for instance: Both AOI and X-ray inspections are used for all ICP Class 2 and Class 3 assemblies to ensure integrity. |
Functional "burn-in" testing under simulated stress conditions, using tools such as cycle chambers, is also a standard practice to verify functionality before shipment.
Full traceability is mandatory. Every part, lot number, and process step must be meticulously documented.
For mission-critical customers in the aerospace or medical fields, manufacturers should provide additional notes and drawings to support any extra work, reassuring the customer that all applicable standards have been met or exceeded.
The compliance burden for Class 3 electronics is significantly higher. The need for thorough inspection, stringent process controls, and complete documentation increases labor, equipment, and material costs.
This investment, however, is needed to ensure the unwavering reliability required for these applications. Without it, there can be a costly consequence.

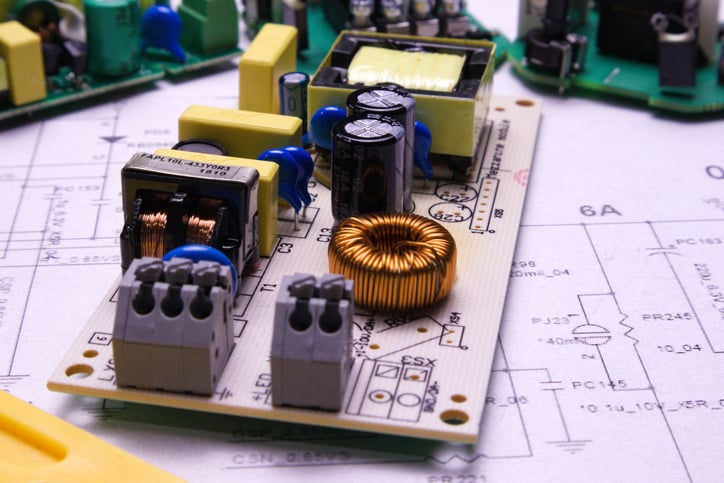

The design itself must reflect the product's classification, taking into account its ability to withstand environmental stress and its expected operational life.
Class 2 products strike a balance between performance and cost, making them suitable for general-purpose applications. The design focuses on functionality and reliability under normal operating conditions, with durability standards that reflect everyday use.
This includes considerations for:
Class 3 products prioritize maximum performance and reliability, making them ideal for critical applications in high-stress environments. The design ensures flawless operation under extreme conditions, with strict standards that leave no room for compromise.
This includes considerations for:
Understanding the differences between Class 2 vs Class 3 is crucial for any electronics professional. The design and manufacturing choices you make must align with your product's end-use and its corresponding IPC classification from the very beginning.
Getting this wrong can force you back to the drawing board, leading to expensive testing and validation cycles. The decision is not about choosing a "better" or "worse" standard. It's about selecting the right classification for the application.
IPC Class 2 offers a practical, cost-effective standard for commercial and industrial products where reliability is important but not absolute. IPC Class 3 provides the highest level of assurance for mission-critical applications where failure could have severe consequences, and partnering with the right Class 3 electronics PCB manufacturer is key.
By carefully considering the reliability expectations, manufacturing rigor, and design robustness required for your product, you can ensure it meets the necessary compliance standards while delivering the performance your customers expect.
If you're seeking additional insights or guidance in navigating the complexities of IPC standards for your next project, our team at Matric Group is here to help. To take the next step, be sure to download our Compliance and Standards e-book — a practical resource designed to help you understand requirements and set your project up for success.
